H05V-K

Power Cables

Single core general porpose flexible cables.

Harmonized cables - Standards CEI 20-20

(Cenelec HD 21.3.S2)

PVC insulated power cables.

Single core non sheathed cables with stranded conductors.

Technical data

Rated voltage Uo/U: 300/500 V.

Test voltage: 2000 V. a.c.

Maximum operating temperature: 70° C.

Maximum short circuit temperature: 160° C.

Stranded annealed copper conductor.

PVC insulation, TI1 type.

Colours available

Light blue, White, Yellow/Green, Grey, Brown, Black,

Red, Orange, Pink, Purple, Dark blue.

Application

Fixed or protected installations in appliances, on or inside

lighting appliances.

Installation in pipes or conduits, only for signalling or command

circuits.

Not suitable for use in high fire risk environments.

Installation

Minimum temperature: 5° C.

Maximum pulling force: 50 N/mmq

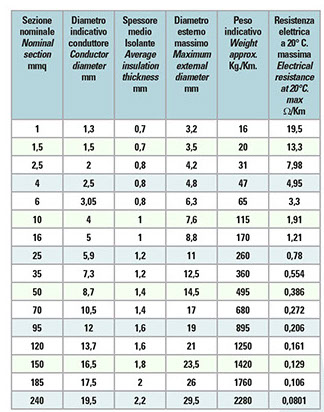

FM9

Power Cables

Single core general porpose flexible cables.

CEI UNEL 35024/1 Table

Power cable insulated nontoxic thermoplastic, low corrosive and

toxic gas emission.

Single core not sheathed cable with stranded conductors in red

copper.

Techincal data

Rated voltage Uo/U: 450/750 V.

Test voltage: 2500 V a.c.

Maximum operating temperature: 70° C.

Maximum short circuit temperature: 160° C.

Stranded annealed copper conductor.

Nontoxic thermoplastic insulation M9 type conforming to CEI

20-22 /III”, CEI 20-37, CEI 20-38 and CEI 20-35 standards.

Identification

Impression marking on the cutting:

“RODA CAVI - CT - IEMMEQU CEI 20 - 22 / III”

Colours available:

From 1 to 2,5 mmq. Light blue, White, Yellow/Green, Grey, Brown, Black,

Red, Orange, Pink, Purple, Dark blue.

From 4 to 16 mmq: Light Blue, Yellow/Green, Grey, Brown, Black.

From 25 to 95 mmq: Yellow/Green, Black.

From 120 to 240 mmq: Black.

Application

System requiring flame retardant cables to presence more people ( 64-2

CEI –standards ). Installation in pipes or conduits.

Fixed or protected istallations, appliances, distribution boards.

Installation

Minium temperature: - 5° C.

Maximum pulling force: 50 N/mmq.( not over )

Minimum bending radius: 4 times the outer diameter.

Packi

ng

100 m

etre coils up section 50 mmq – From 70 to 240 mmq in wooden

drums.

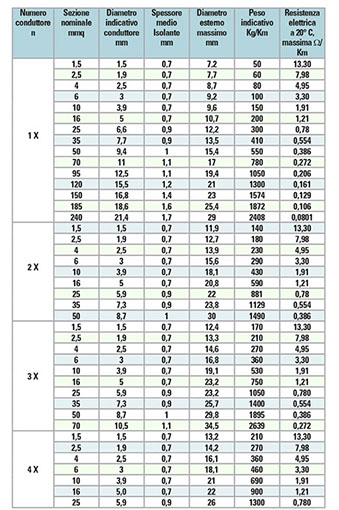

FG7-R

Power Cables

Power cables for fixed installation.

CEI UNEL 35375, Table CEI 20-22/II - CEI 20-37/2 - CEI

20–13 CEI 20-35 unleaded

Flexible, single and multi-core power cables EPR rubber

insulated under a PVC sheathing - flame retardant - low

corrosive gas emission.

Technical data

Rated voltage Uo/U: 0,6/1 KV.

Test voltage: 4 KV. c.a.

Maximum operating temperature: 90° C

Maximum short circuit temperature: 250° C

Stranded annealed copper conductor.

Core insulation: EPR rubber type.

PVC sheathing Rz type.

Coulor: Light grey - RAL 7035

Identification

Impression/ink marking on the sheath depending on the section

“RODA CAVI - CT - IEMMEQU - CEI 20-22/II”-FG7(O)R-section-

progressive metrature.

Core colouring scheme

1x: Black

2x: Brown - Light blue

3x: Yellow/Green - Brown - Light blue

4x: Yellow/Green - Black - Grey - Brown

5x: Yellow/Green - Black - Light blue - Brown - Grey.

Application

Low voltage power system in industrial and civil environments.

Suitable for fixed laying both indoor, even in wet areas and outdoor.

Easily installed on walls and metal supports. They can be buried directly.

Installation

Fixed laying.

Minimum temperature: 0° C.

Maximum pulling force: 50 N/mmq

Minimum bending radius: 4 times the outer diameter.

Packing

Up to 6 mmq 100 mt coils/Wooden drums 10 mmq upwards - Wooden drums.

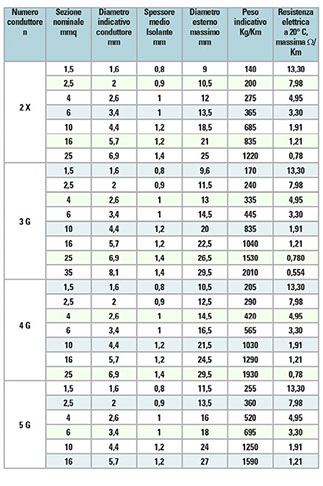

FG7M1

Power Cables

Power cables for fixed installation.

CEI UNEL 35382, Table

Flexible, single and multi-core power cables EPR rubber

insulated under a Thermoplastic sceathing of M1 type, flame

retardant, low corrosive gas emission.

Techincal data

Rated voltage Uo/U: 0,6/1 KV.

Maximum operating temperature: 90° C

Maximum short circuit temperature: 250° C

Stranded annealed copper conductor.

Core insulation: EPR rubber type.

THERMOPLASTIC sheathing M1 type.

Coulor Green.

Conformino to CEI 20-22/III. CEI 20.37, CEI 20-38 and CEI 20-35

standards

Identification

ink marking on the sheath “RODA CAVI - -IEMMEQU - CEI 20 -

22/IIi”-FG7OM1-section-progressive measurament.

Core colouring scheme:

2x: Brown - Light blue

3x: Yellow/Green - Brown - Light blue

4x: Yellow/Green - Black - Light blue - Brown

5x: Yellow/Green - Black - Light blue - Brown - Black

Application

Low voltage power system in industrial and civil environments to

presents more people. Suitable for fixed laying both indoor, even in wet

areas and outdoor. Easily installed on walls and metal supports. They can

be buried directly

Installation

Fixed laying.

Minimum temperature: -5° C.

Maximum pulling force: 50 N/mmq

Minimum bending radius: 4 times the outer diameter.

Packing

100 mt coils/Wooden drums

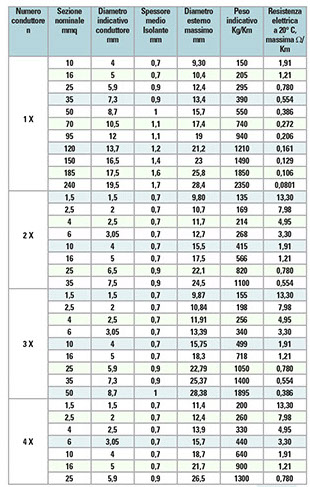

FG7(O)M1

Power Cables

Power cables for fixed installation.

CEI UNEL 35375, CEI UNEL 35377, TableCEI 20-22/II

CEI 20-37/2 – CEI 20–13 CEI 20-35 unleaded

Flexible, single and multi-core power cables EPR rubber

insulated under a PVC sheathing - flame retardant - low

corrosive gas emission.

Techincal data

Rated voltage Uo/U: 0,6/1 KV.

Test voltage: 4 KV. c.a.

Maximum operating temperature: 90° C

Maximum short circuit temperature: 250° C

Stranded annealed copper conductor.

Core insulation: EPR rubber type.

PVC sheathing Rz type.

Coulor: Light grey - RAL 7035

Identification

Impression/ink marking on the sheath depending on the

section “RODA CAVI - IEMMEQU - CEI 20-22/II”-FG70R-section-

progressive metrature.

Core colouring scheme:

1x: Black

2x: Brown - Light blue

3x: Yellow/Green - Brown - Light blue

4x: Yellow/Green - Black - Light blue - Brown

5x: Yellow/Green - Black - Light blue - Brown - Grey.

Application

Low voltage power system in industrial and civil environments.

Suitable for fixed laying both indoor, even in wet areas and outdoor.

Easily installed on walls and metal supports. They can be buried directly.

For low voltage systems and signals carriage

Installation

Fixed laying.

Minimum temperature: 0° C.

Maximum pulling force: 50 N/mmq

Minimum bending radius: 4 times the outer diameter.

Packing

Up to 6 mmq 100 mt coils/Wooden drums 10 mmq upwards - Wooden drums.

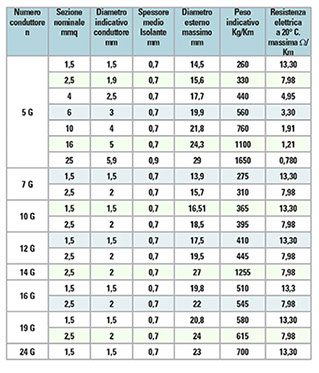

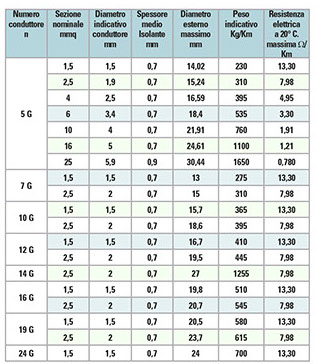

FROR 450/750-V

Power Cables

Power cables for mobile service.

CEI 20 - 22 II Standard CEI 20 - 37 Part. 1

Flexible, multi-core power cables, PVC insulated and PVC

sheathed - flame retardant - low corrosive gas emission.

Technical data

Rated voltage Uo/U: 450/750 V.

Test voltage: 2500 V. c.a.

Maximum operating temperature:

60° C. for mobile service

70° C. for fixed installation

Maximum short circuit temperature:

150° C. for mobile service

160° C. for fixed installation

Stranded annealed copper conductor.

PVC core insulation TI2 type.

PVC sheath conforming to TM1 and TM2 quality requirements.

Colour - Grey - RAL 7035

Identification

IImpression marking on the insulation:

“RODA CAVI - IEMMEQU - CEI 20-22/II”-FROR-section-

progressivemeausurument

Core colouring scheme

2x: Brown - Light blue

3x: Yellow/Green - Brown - Light blue

4x: Yellow/Green - Brown - Light blue - Black

5x: Yellow/Green - Black - Brown - Light blue - Black

Application

Suitable for both fixed installations and mobile systems.

Indoor installations, even in humid areas and outdoor for temporary use.

Recommended for the installation of lighting system in areas for public

use and entertainment.

Installation

Minimum temperature: 5° C.

Maximum pulling force: 10 N/mmq in mobile and 50 N/mmq for fixed

installations. Minimum bending radius: 10 times the outer diameter for

mobile service, 4 times the outer diameter for fixed installation.

Packing

100 metre coils - Wooden drums.

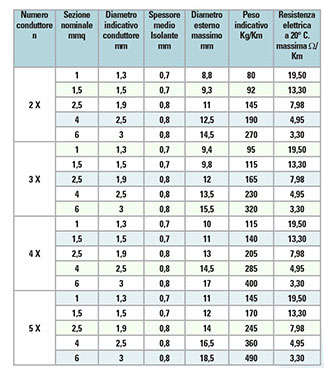

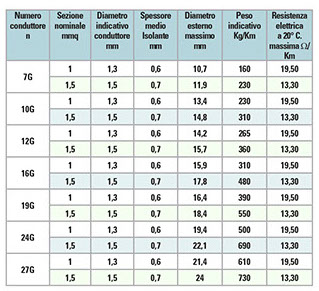

FROR 300/500-V

Signalling Cables Control

and Signalling Cables

Signalling cables for mobile service.

CEI 20-22/II,CEI 20-20/1,CEI 20-20/2 CEI 20-37/2,CEI

20-35 Standard

Flexible, multi-core cables for fixed and mobile installation, PVC

insulated under a thin PVC

Layer sheathed flame retardant - low corrosive gas emission.

Techincal data

Rated voltage Uo/U: 300/500 V.

Maximum operating temperature:

60° C. for mobile service

70° C. for fixed installation

Maximum short circuit temperature:

150° C. for mobile service

160° C. for fixed installation

Stranded annealed copper conductor.

PVC core insulation TI2 type.

PVC sheath conforming to TM1 and TM2 quality requirements.

Identification

Impression marking on the sheath:

“RODA CAVI - IEMMEQU - CEI 20-22/II”-FROR300/500 V-section-

progressive meausurument

Colours available:

Grey - RAL 7035

Application

Suitable for both fixed installations and mobile service.For systems

that use flame ritardand cables accordino to CEI standards. Indoor

installations, even in humid areas and outdoor for temporary use.

Recommended for the installation of lighting system in areas for public

use and entertainment.

Installation

Minimum temperature: 0° C.

Maximum pulling force: 1,5 kg/mmq in mobile service and 5 kg/mmq for

fixed installations.

Minimum bending radius: 10 times the outer diameter for mobile service,

4 times the outer diameter for fixed installation.

Packing

100 metre coils - Wooden drums.

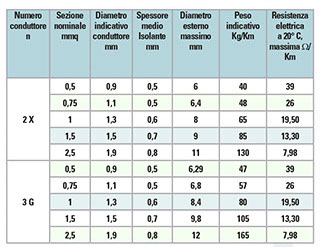

H03VV-F - H05VV-F

Power Cables

Flexible multi-core signalling cables.

Harmonized cables - Standard

CEI 20 - 20 (Cenelec HD 21.5.S3)

Flexible PVC insulated, PVC sheathed cables.

Technical data

Rated voltage Uo/U: 300/500 V.

Test voltage: 2000 V. in c.a.

Maximum operating temperature: 70° C.

Maximum short circuit temperature: 150° C.

Stranded annealed copper conductor.

PVC core insulation TI2 type

PVC Sheating TM2 type. Black / RAL 9005 - Whithe /

RAL 9010

Core colouring scheme

2x: Brown - Light blue

3x: Yellow/Green - Brown - Light blue

Application

Average mechanical stresses, domestic appliances

also in wet environments, for cooking and heating appliances as

long as the cables does not come into contact with hot parts and

is not subyect radiations. Not suitable for use outdoor, in industry

or agriculture and for powering non-domestic portable tools.

Installation

Minimum temperature: 5° C.

Maximum pulling force: 1,5 N./mmq

Minimum bending radius: 10 times the outer diameter.

Note

For actual conditions of use and laying refer to CEI 20 - 40

Standards.

Sheathing: Black/White

Packing

100 metre coils - Wooden drums.

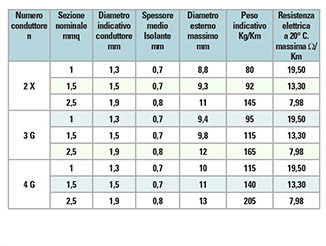

FFROR

Power Cables

Extra-flexible cable for mobile applications.

Armonized cables standard CEI UNEL 00722 e 00725,

VDE 0293

PVC insulated flexible cable PVC flexible sheathed.

Techincal data

Flexible bare copper class 6 conformity with CEI 20 - 29,

IEC 228 e VDE 0295.

Insulation PVC compound type TI2. conformity CEI 20-22.

Stranded leades grouped in concentric layers.

Sheath PVC compound type TM2 conformity CEI 20 - 20.

Colours available:

Orange.

Application

Extra-flexible cable for portable equipment, extensions cable for

tools, household, appliances, electrical machinery for DIY and

gardening.

Packing

100 metre coils - Wooden drums

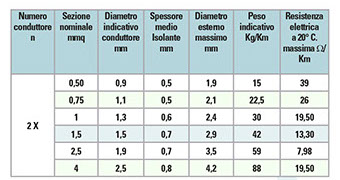

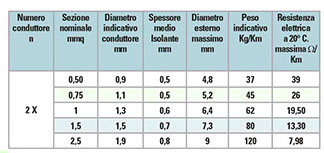

A03VVH2-F

Power Cables

Electric cable under a light sheating.

National cable class 5 IEC 228

PVC insulated flexible cables PVC flexible sheathed.

Technical data

Flexible bare copper class 6 conformity CEI 20 - 29.

Insolution PVC compound type TI2 conformity

CEI 20 - 20.

Sheath PVC compound type TM2 conformity

CEI 20 - 20.

Rated voltage Uo/U 300/300 V.

Coloure sheath: Whithe, Black, Grey.

Application

Suitable for apparatius with connections subjected to

medium mechanical solecitations, offices little household

appliances.

Packing

100 metre coils.

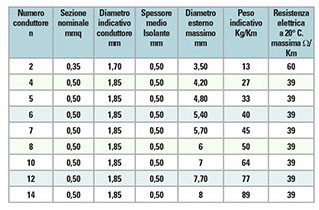

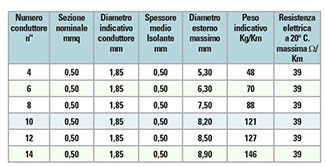

FROR FRX

Control and Signal Cables

Signalling and control multiconductor cable flame retardant.

Standard CEI 20 - 22 II - Standard CEI 20 - 37 Part.I

Cables for control, signalling, order, and measure plant.

The characterist of dimension is suitable for intercom,computer

and electronic systems.

Techincal data

Rated voltage: Uo/U 300/300 V.

Test voltage: 1000 V. c.a.

Maximum operating temperature 60° for mobile service.

Stranded annealed copper conductor class 5 conformity

CEI - IEC.

PVC insulation conformity CEI e IEC.

PVC sheath conformity to CEI e IEC.

Colour - Grey RAL 7035

Identification

Impression marking on the insulation:

“RODA CAVI - CT - FROR FRX 300/300 V.”

Core colouring scheme:

White, Red, Black, Green, Yellow, Brown, Grey, Pink, Orange,

Blue, Purple, Light green, Light yellow, Light brown.

Installation

Fixed laying.

Maximum pulling force: 1,5 kg/mmq.

Minimum bending radius: 10 times the outer diameter.

Packing

100 metre coils - Wooden drums.

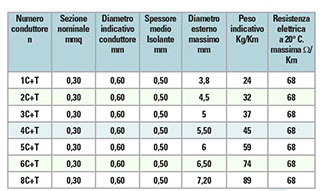

URX-R

Telephones Cables

Telephone cables internal systems.

STANDARDS CEI 20 - 20.

Cables for interconnection of telephone apparatius,

trasmitting and permutation in telephone central.

Technical data

Test voltage: 300 V. c.a.

Operating temperature - 10 C. to + 80° C.

Stranded rigid red copper conductor class 5 conformity

to CEI e IEC.

PVC insulation conformity to CEI 20 - 20.

PVC sheath conformity to CEI 20 - 20.

Colour-grey RAL 7035.

Core colouring scheme

White, Red, Black, Green, Yellow, Brown, Grey, Pink, Orange,

Blue, Light green, Light yellow, Light brown, Light pink, Turquoise,

Light red.

Installation

Fixed laying.

Maximum pulling force: 50 N/mmq.

Minimum bending radius: 15 times the outer diameter.

Packing

100 metre coils - Wooden drums

FRX

Signal Cables

Intercom flexible cable not sheathed.

STANDARDS CEI 20 - 20.

Cables for connection in plant for signalling, controll, order and

measure if there aren’t problem of interference of electro-

magnetic wave from outdoor environment.

Techincal data

Test voltage: 250/250 V. c.a.

Operating temperature - 10° C. to + 80° C.

Flexible red copper conductor class 5 conformity CEI - IEC.

PVC insulation.

Core colouring scheme:

White, Red, Black, Green, Yellow, Brown, Grey, Pink, Orange,

Blue, Purple, Light green, Light yellow, Light brown.

Installation

Fixed laying. Maximum pulling force type: 50 N mmq.

Minimum bending radius: 10 times the outer diameter.

Packing

100 metre coils - Wooden drums.

TRASMISSION CABLES  HI-FI

Trasmission Cable

Trasmission cable.

Armonized cables

PVC flexible cables PVC flexible sheathed.

Technical data

Flexible bare copper class 5 conformity CEI 20 - 29.

Tinned copper transparent flat cables.

Insulation PVC compound type TI1.

Bicolor (Red-Black) insulation.

Application

In the Hi-Fi field for the loud speaker connection.

Packing

100 metre coils.

Technical office is available to realize flat on detailed request

of customer.

Colour: White, Black, Brown, Gold, Transparent yellow, Silver

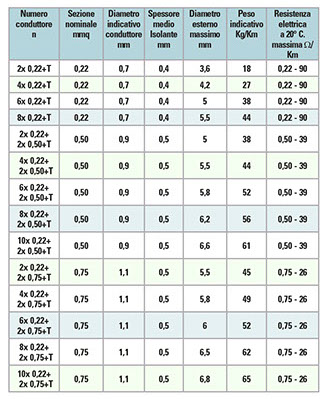

ANTITHEFT CABLES

NORME CEI 20 - 22 II.

Cables for plant in domestic dwelling if they same

aren’t with conductors of different type and use that con

to cause interference and for industrial plant if request security

and advanced technology.

Techincal data

Operating temperature 10° C. to + 80° C.

Flexible indoor red copper conductor.

PVC insulation of the indoor conductors.

Mylar anti-migranting tape spiral wrapped.

Continuity cable in bare copper.

Sheilding with tape AL / Pes spiral wrapped.

External sheath PVC coloure whithe RAL 9010 antiflame CEI 20

- 22 II.

Colours available:

Accarding regulations DIN 47100

Installation

Minimum bending radius: 10 times the outer diameter.

Packing

100 metre coils.

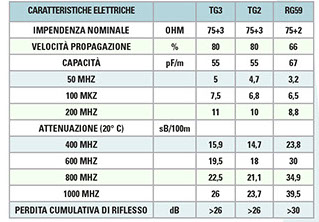

COAXIAL CABLE

COAXIAL CABLE

Tv downlead cables.

The range of coaxial cables RODA CAVI is suitable

when the installation requises a small external diameter and

particular flexibility because there is plasticity of the extruded

foam.

Low levels of attenuation the range cables is suitable for

where the TV signal have a low intensity, for indoor plant, for

derivations and extensions.

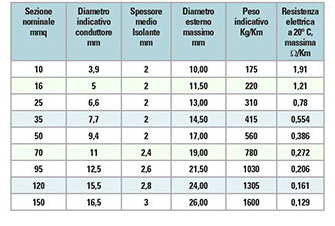

H01N2 - D

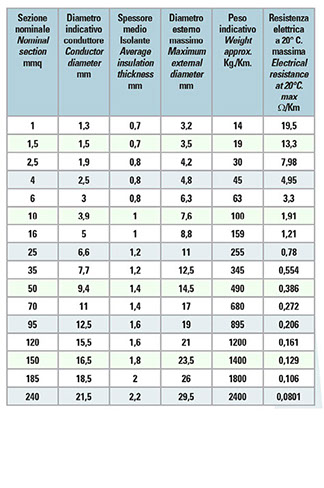

Weld Cables

Welding Cables..

CEI UNEL 20-19 / 6 Table IEMMEQU <HAR>

Cable suitable for mobile connections between welding

equipment and electrodes or ground clamps.

Techincal data

Rated voltage Uo/U: 100/100 V.

Test voltage: 1 KV a.c.

Maximum operating temperature: + 60° C.

Minimum operating temperature: -15° C

Stranded annealed copper conductor.

insulation:Type EM 5 special chorinated elastomer.This

insulation is CEI 20-19/6 standards.

Identification

Ink marking on the insulation:

“RODA CAVI <HAR>IEMMEQU CEI 20-19 / 6- H01N2-D +

SECTION + PROGRESSIVE METRATURE

Colours available:

Black.

Application

This cable, thanks to high qualità of materials used and the carefull

manufacturing, can be used in high duty conditions like those found in

mechanical industries and shipyards. The cable has a very good resistance to

machanical stresses to abrasion, shocks, tearing and squashing.It stand very

well to chamical degradation to the axposure to U.V. and infrared rays.Can be

used in wet premises, in presence of oils and hydrocarbon’s vapour.

Installation

Maximum pulling force: 50 N/mmq.

Minimum bending radius: 4 times the outer diameter.

Packing

100 metre coils up section 50 mmq - Wooden drums.

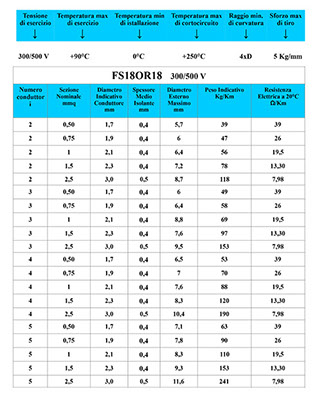

FS18OR18

Nominal tension

Uo / U 300/500 V

Norms

CEI UNEL 35720 October 2018, EN 50575, EN 50399, EN 60332-1-2, EN 60754-2,

STANDARDS: CEI 20-11 / 0-1 V 1 (EN 50363-0), CEI EN 50525-1, CEI EN 50525-2-11 (Annex A)

EN 61034-2, UNI 10501-6, CEI UNEL 35016.

Construction Products Regulation

305/2011 EU

European directive

2014/35 / EU (B.T.) - 2011/65 / EC and 2015/863 / EU (RoHS).

conductor

Flexible red annealed copper conductor class 5 CEI EN IEC 60228 Applicable

insulating

Polyvinyl chloride grade S18 insulation compound. Standard CEI 20-11 / 0-1 V1

Core colors: second standard CEI UNEL 00722

FILLER

Thermoplastic compound in non-fibrous and non-hygroscopic material

Color: neutral / black

sheath

Thermoplastic compound based on R18 quality polyvinyl chloride. Standard CEI 20-11 / 0-1 V1

Ral brown color. 8400

Marking: inkjet

RODA CAVI Cca-s3, d1, a3 - year of manufacture, FS18OR18 300/500 V Formation x section, progressive length

Conditions of Employment

Cables for temporary electric power supply under construction and other civil engineering works with the aim of limiting the production of fire, density of smoke, complying with the CPR Construction Products Regulation.

Suitable for installation in dry or wet rooms (ref. CEI 20-40)
